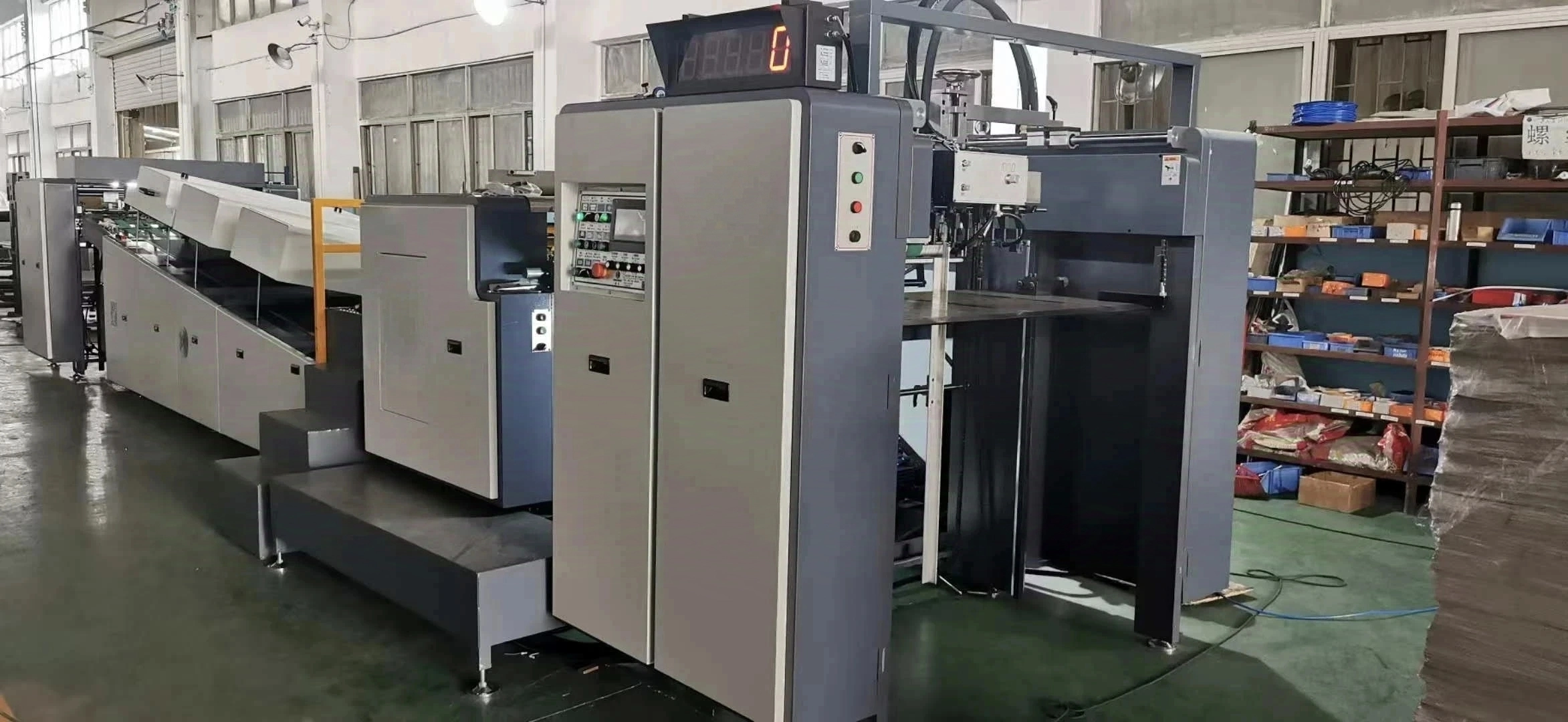

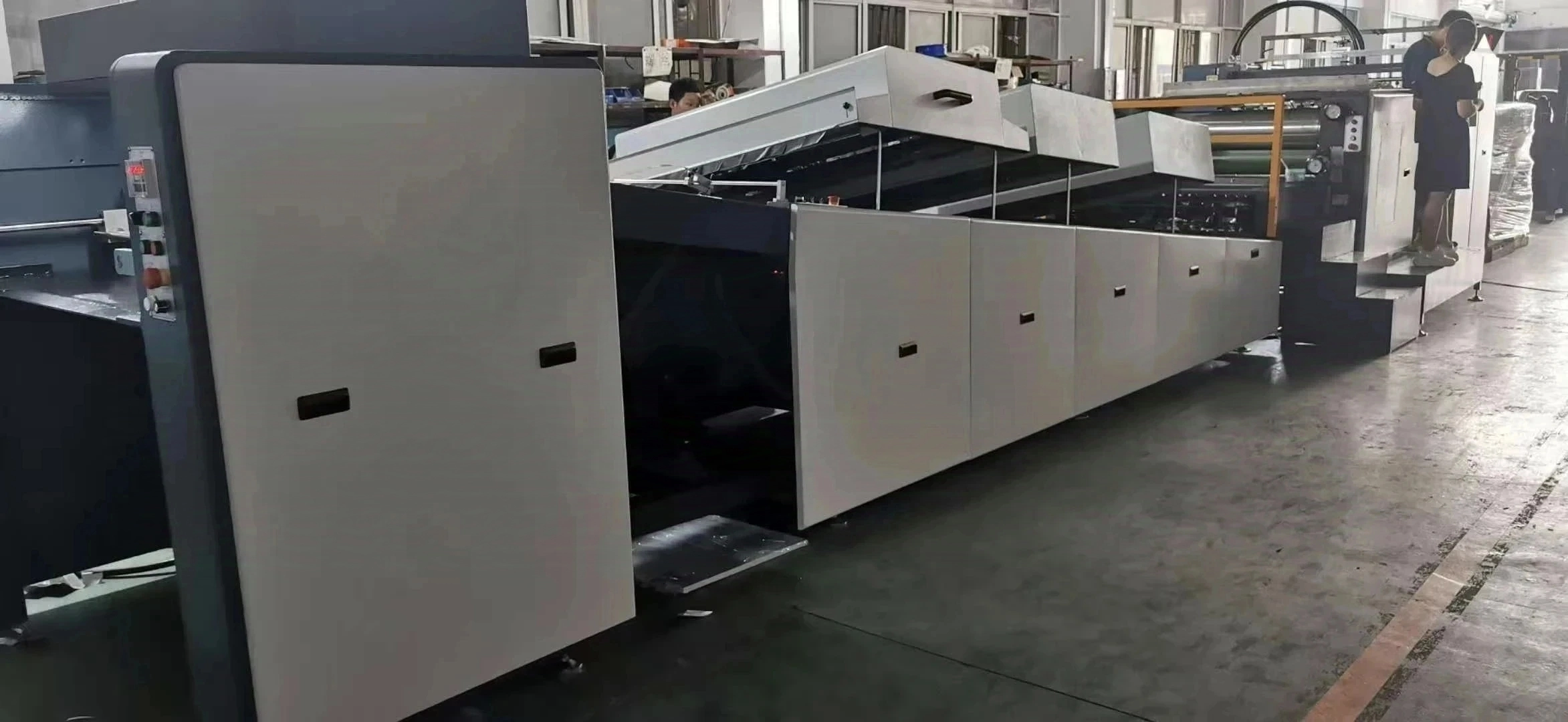

Automatic UV Spot Machine

Automatic control

- The motor USES frequency conversion speed regulation, safe and reliable.

- The whole machine USES PLC programmable control, simple operation, easy maintenance.

- All parts of the cable are connected by fast connector, easy to install.

Band

Vtech

Speed

6500-8000

INQUIRY

Automatic UV Spot Machine

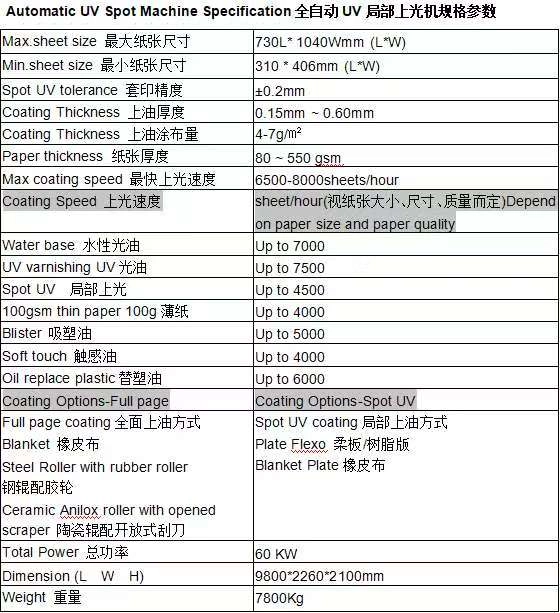

Technical Parameters

Max. curing size

2400mm

Cooling mode

Water cooling/Air cooling

Max. electric power

30KW

Nozzles type

Quick plug

Min. humidity

200mm

Dichroic

As chioce

Blowing size

ф100mm

Water pipe size

ф14

Warranty

One year

Water pipe joints

Brass joints

UV LED Advantages

WT is a professional R&D and production of water cooled UV curing system, LED UV curing system enterprises.

WT has an array of UV lamp and LED products to meet almost any printing or converting need. All products can be integrated seamlessly by WT to fit your machine.

Print without limitations

Unlike UV lamps, LEDs emit little infrared heat towards the substrate. This avoids common issues such as high pile temperatures, curling of heat-sensitive materials and loss of moisture in paper.

Ultimate productivity and peace of mind

No moving parts for low maintenance and no warmup/cool-down mean less UV related downtime, which increases press productivity.

Reduced energy consumption

LED instant on-off means that no energy is consumed when the press is idle. The higher electrical efficiency of LEDs and the purity of UV output allow typical energy savings of over 70%, compared to H-UV or IR lamp systems.

No marking, no sealer or spray powder

UV LED inks and varnishes are 100% cured instantly after the LED lamp.

Circuit Diagram

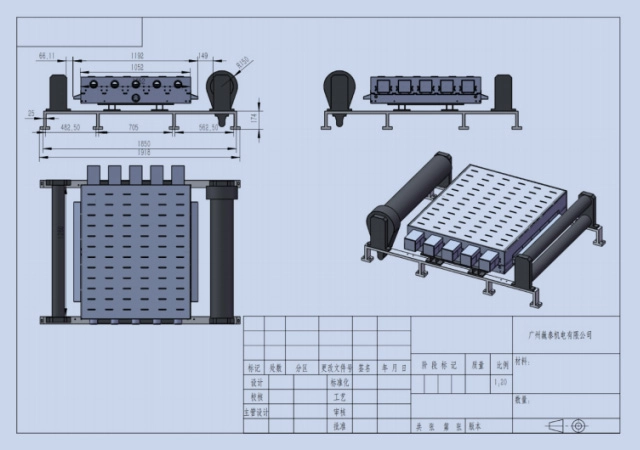

UV cassettes with water cooled nozzles

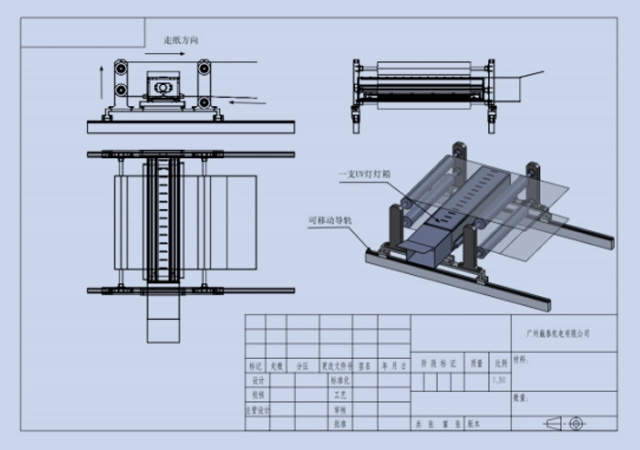

UV curing parameters for Roto gravure online system

UV exposur ing system parameters for Roto gravure online system

To achieve UV curing +UV drop off speed up to 180m/min.

Common Applications

Suitable for various printing machines such as offset printing, gravure printing, flexo printing, silk screen printing, etc.

led uv curing systems for printing machine

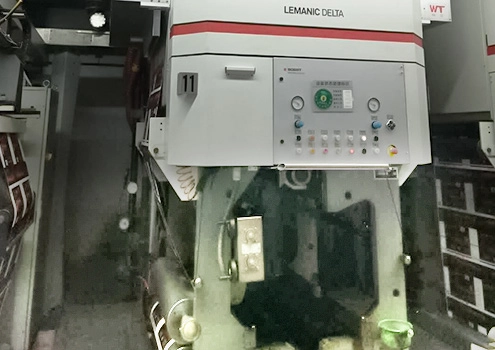

UV print in sheetfed grevure press getting screen printing effects

UV print in sheetfed grevure press getting screen printing effects

cf14d8efcb8f360787ecaf19ed52663

TAGS:

Feel Free
To Contact us.

WT will be pleased to assist your evaluation and decision-making process to ensure that the optimal mercury arc, LED, or hybrid solution is matched to your application, process, and integration needs. Please contact our experienced team. We are available to offer guidance on product selection and can deliver the level of experienced system integration and ancillary components you require.

If you would like to find out more about this curing system, we are here to help. Please contact the sales representative that is best placed for your region.

Water-cooled UV Curing Equipment

UV curing equipment is equipment that uses UV technology in the field of curing. It consists of UV light source system, cooling system and circuit control system.
Guangzhou Weitai has a variety of UV curing systems with different cooling methods to meet a wide range of UV process applications.

Water-cooled UV Curing Equipment

Water cooled UV shutter lampshade

The Water-Cooled UV Shutter lampshade is a high-performance solution designed for modern high-speed printing presses, addressing critical challenges in UV ink and coating curing. By integrating advanced water-cooling technology and a precision shutter mechanism, it ensures stable UV exposure control, minimizes heat generation, and maximizes production uptime for industries requiring rapid, reliable curing processes.

Water cooled UV shutter lampshade

LED water-cooled lampshade

LED water-cooled lampshade is an innovative curing equipment developed specifically for high-speed printing machines. It combines efficient water-cooled heat dissipation technology with high-energy LED light sources, aiming to solve the problems of light source overheating, rapid light decay, and short lifespan caused by long-term high-speed operation of traditional printing equipment. Its core design uses a circulating water cooling system for precise temperature control, ensuring stable output of the light source while meeting the stringent requirements of printing technology for light uniformity, color temperature consistency, and energy conservation and environmental protection. It is an ideal choice for improving printing quality and production efficiency.

LED water-cooled lampshade
