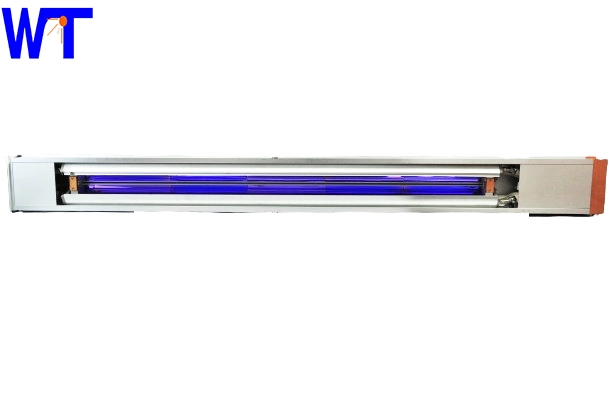

Water cooled UV shutter lampshade

The Water-Cooled UV Shutter lampshade is a high-performance solution designed for modern high-speed printing presses, addressing critical challenges in UV ink and coating curing. By integrating advanced water-cooling technology and a precision shutter mechanism, it ensures stable UV exposure control, minimizes heat generation, and maximizes production uptime for industries requiring rapid, reliable curing processes.

Max. curing size
2400mm
Max. electric power
30kva
Blowing size
ф100mm
Cooling mode
water-cooling
Nozzles type
Quick plug
Dichroic
As chioce
Warranty
one year
INQUIRY
Water cooled UV shutter lampshade
DSC_3680-removebg-preview1
DSC_3648-removebg-preview11
DSC_3654-removebg-preview11
DSC_3645-removebg-preview1
DSC_3680-removebg-preview1
DSC_3648-removebg-preview11
DSC_3654-removebg-preview11
DSC_3645-removebg-preview1
Water cooled UV shutter lampshade

The Water-Cooled UV Shutter lampshade is a high-performance solution designed for modern high-speed printing presses, addressing critical challenges in UV ink and coating curing. By integrating advanced water-cooling technology and a precision shutter mechanism, it ensures stable UV exposure control, minimizes heat generation, and maximizes production uptime for industries requiring rapid, reliable curing processes.

 Advanced Water-Cooling System

  • 40% Temperature Reduction: Prolongs UV lamp lifespan and prevents substrate warping under continuous operation.

  • Energy Efficiency: Reduces power consumption by 25% compared to traditional air-cooled systems.

 Industrial-Grade Durability

Heat-Resistant Alloy Housing: Withstands temperatures up to 300°C, compatible with 365nm/395nm UV wavelengths.

IP65 Protection: Dustproof and moisture-resistant for harsh production environments.

 Plug-and-Play Compatibility

Fits major printing press brands (Heidelberg, Bobst, etc.)

  • Supports roll-to-roll, flexographic, and offset printing configurations.

Max. curing size
2400mm
Max. electric power
30kva
Blowing size
ф100mm
Cooling mode
water-cooling
Nozzles type
Quick plug
Dichroic
As chioce
Warranty
one year

Technical Parameters

Max. curing size

2400mm

Cooling mode

Water cooling/Air cooling

Max. electric power

30KW

Nozzles type

Quick plug

Min. humidity

200mm

Dichroic

As chioce

Blowing size

ф100mm

Water pipe size

ф14

Warranty

One year

Water pipe joints

Brass joints

UV LED Advantages

WT is a professional R&D and production of water cooled UV curing system, LED UV curing system enterprises.

WT has an array of UV lamp and LED products to meet almost any printing or converting need. All products can be integrated seamlessly by WT to fit your machine.

n01

Print without limitations

Unlike UV lamps, LEDs emit little infrared heat towards the substrate. This avoids common issues such as high pile temperatures, curling of heat-sensitive materials and loss of moisture in paper.

n02

Ultimate productivity and peace of mind

No moving parts for low maintenance and no warmup/cool-down mean less UV related downtime, which increases press productivity.

n03

Reduced energy consumption

LED instant on-off means that no energy is consumed when the press is idle. The higher electrical efficiency of LEDs and the purity of UV output allow typical energy savings of over 70%, compared to H-UV or IR lamp systems.

n04

No marking, no sealer or spray powder

UV LED inks and varnishes are 100% cured instantly after the LED lamp.

Circuit Diagram

uv led lamp system

UV cassettes with water cooled nozzles

uv curing system

UV curing parameters for Roto gravure online system

uv led curing system

UV exposur ing system parameters for Roto gravure online system

uv led printing system

To achieve UV curing +UV drop off speed up to 180m/min.

Common Applications

Suitable for various printing machines such as offset printing, gravure printing, flexo printing, silk screen printing, etc.

led uv curing systems for printing machine

UV print in sheetfed grevure press getting screen printing effects

printing uv curing system

UV print in sheetfed grevure press getting screen printing effects
