An LED pre-press testing equipment that can be widely used in schools, printing plants, and R&D institutions. It can test the curing conditions of various inks and products using LEDs. The LED band can be customized according to customer needs.
Max. electric power
1.6KW
Cooling mode
Water cooling/Air cooling
Water pipe joints
Copper joint
Band
365-395nm
Speed
30m/min
INQUIRY

 LED DC power supply

Use Taiwan's industrial-grade DC power supply supplier: "Mean Well" LED UV power supply, which has various protections such as short circuit, over-voltage, and over-temperature, and is highly safe.

 LED lamp set

American Luminus brand, LED UV wavelength range is 365-395nm, has efficient UV conversion capability, good heat dissipation, and stable operation. The lamp beads are guaranteed for 2 years or 10,000 hours.

 Electronic components

Max. electric power
1.6KW
Cooling mode
Water cooling/Air cooling
Water pipe joints
Copper joint
Band
365-395nm
Speed
30m/min

Technical Parameters

Max. curing size

2400mm

Cooling mode

Water cooling/Air cooling

Max. electric power

30KW

Nozzles type

Quick plug

Min. humidity

200mm

Dichroic

As chioce

Blowing size

ф100mm

Water pipe size

ф14

Warranty

One year

Water pipe joints

Brass joints

Technical Parameters

LED light power

Band

Warranty

1.6KW

365-395nm

One year

Speed

Cooling mode

Conveyor

30m/min

Water cooling/air cooling

Customized on demand

UV LED Advantages

WT is a professional R&D and production of water cooled UV curing system, LED UV curing system enterprises.

WT has an array of UV lamp and LED products to meet almost any printing or converting need. All products can be integrated seamlessly by WT to fit your machine.

n01

Print without limitations

Unlike UV lamps, LEDs emit little infrared heat towards the substrate. This avoids common issues such as high pile temperatures, curling of heat-sensitive materials and loss of moisture in paper.

n02

Ultimate productivity and peace of mind

No moving parts for low maintenance and no warmup/cool-down mean less UV related downtime, which increases press productivity.

n03

Reduced energy consumption

LED instant on-off means that no energy is consumed when the press is idle. The higher electrical efficiency of LEDs and the purity of UV output allow typical energy savings of over 70%, compared to H-UV or IR lamp systems.

n04

No marking, no sealer or spray powder

UV LED inks and varnishes are 100% cured instantly after the LED lamp.

Circuit Diagram

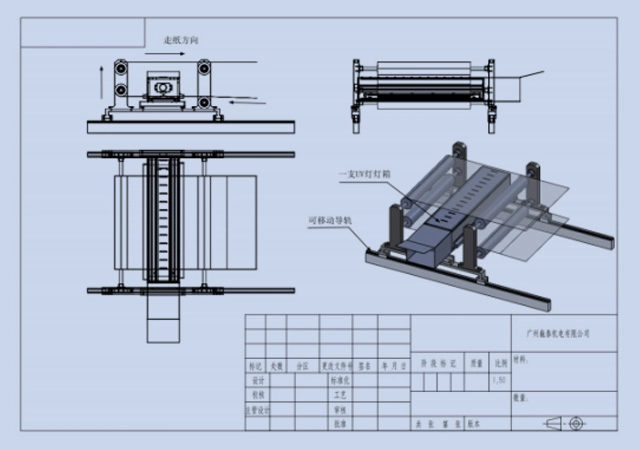

uv led lamp system

UV cassettes with water cooled nozzles

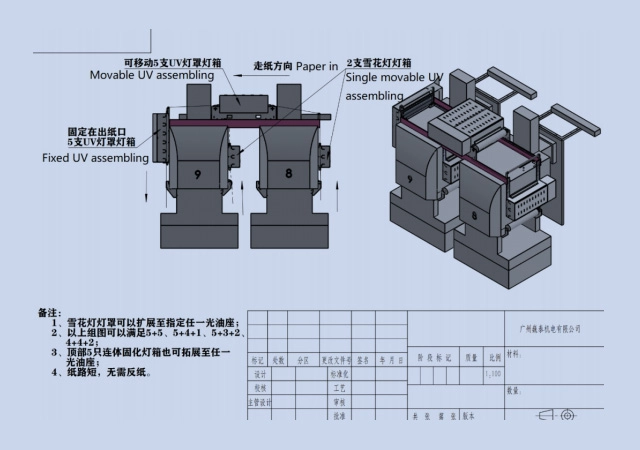

uv curing system

UV curing parameters for Roto gravure online system

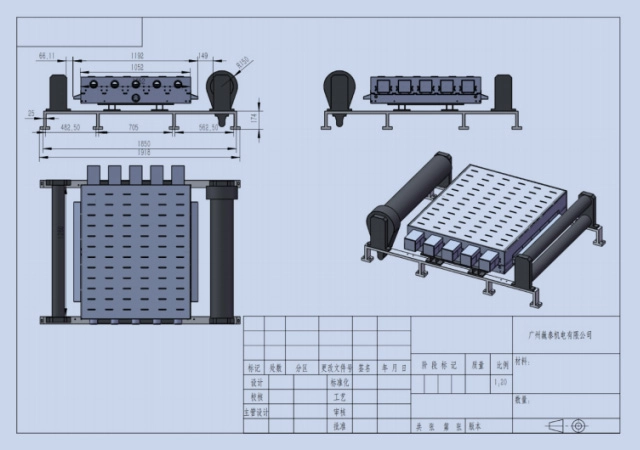

uv led curing system

UV exposur ing system parameters for Roto gravure online system

uv led printing system

To achieve UV curing +UV drop off speed up to 180m/min.

Common Applications

Suitable for various printing machines such as offset printing, gravure printing, flexo printing, silk screen printing, etc.

1

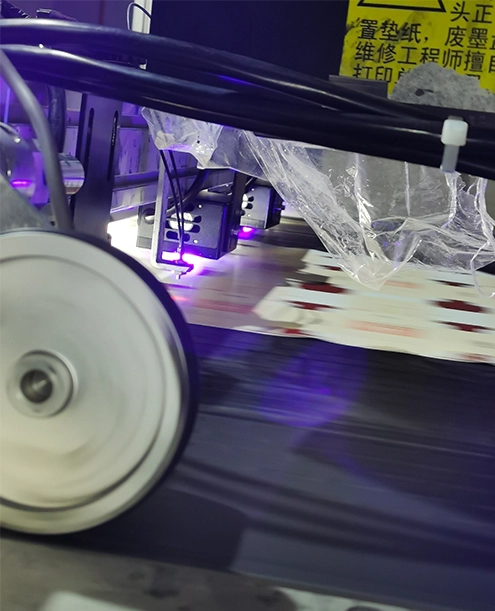

UV print in sheetfed grevure press getting screen printing effects

2

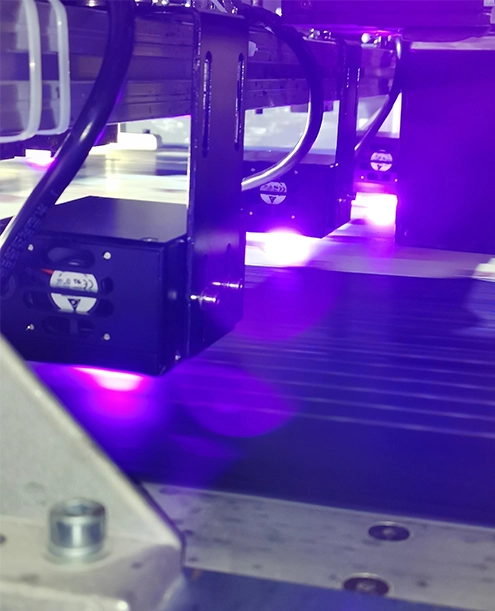

UV print in sheetfed grevure press getting screen printing effects
