Specially designed for offset printing machines, it can cure traditional UV ink. It has the characteristics of fast curing speed, low curing temperature, safety and environmental protection, long service life and good film-forming performance.
Max. curing size
2400mm
Max. electric power
90W/CM
Min. humidity
42.5mm
Cooling mode
Water cooling/Air cooling
Nozzles type
Quick plug
Dichroic
As chioce
Water pipe joints
Copper joint
INQUIRY

 LED DC power supply

Use Taiwan's industrial-grade DC power supply supplier: "Mean Well" LED UV power supply, which has various protections such as short circuit, over-voltage, and over-temperature, and is highly safe.

 LED lamp set

American Luminus brand, LED UV wavelength range is 365-395nm, has efficient UV conversion capability, good heat dissipation, and stable operation. The lamp beads are guaranteed for 2 years or 10,000 hours. .

 Electronic components

Use famous brands such as Japan's Mitsubishi, Switzerland's ABB, and the United States' VIE, with guaranteed quality.

Max. curing size
2400mm
Max. electric power
90W/CM
Min. humidity
42.5mm
Cooling mode
Water cooling/Air cooling
Nozzles type
Quick plug
Dichroic
As chioce
Water pipe joints
Copper joint

Technical Parameters

Max. curing size

2400mm

Cooling mode

Water cooling/Air cooling

Max. electric power

30KW

Nozzles type

Quick plug

Min. humidity

200mm

Dichroic

As chioce

Blowing size

ф100mm

Water pipe size

ф14

Warranty

One year

Water pipe joints

Brass joints

Technical Parameters

Max. curing size

Maximum power

Minimum irradiation width

Band

Warranty

2400mm

90W/CM

42.5mm

365-395nm

One year

Cooling mode

Connector

Chip temperature

Water pipe size

Energy ratio

Water cooling/Air cooling

Quick plug

40°C/104°F

ф14

300mj/cm³

UV LED Advantages

WT is a professional R&D and production of water cooled UV curing system, LED UV curing system enterprises.

WT has an array of UV lamp and LED products to meet almost any printing or converting need. All products can be integrated seamlessly by WT to fit your machine.

n01

Print without limitations

Unlike UV lamps, LEDs emit little infrared heat towards the substrate. This avoids common issues such as high pile temperatures, curling of heat-sensitive materials and loss of moisture in paper.

n02

Ultimate productivity and peace of mind

No moving parts for low maintenance and no warmup/cool-down mean less UV related downtime, which increases press productivity.

n03

Reduced energy consumption

LED instant on-off means that no energy is consumed when the press is idle. The higher electrical efficiency of LEDs and the purity of UV output allow typical energy savings of over 70%, compared to H-UV or IR lamp systems.

n04

No marking, no sealer or spray powder

UV LED inks and varnishes are 100% cured instantly after the LED lamp.

Circuit Diagram

uv led lamp system

UV cassettes with water cooled nozzles

uv curing system

UV curing parameters for Roto gravure online system

uv led curing system

UV exposur ing system parameters for Roto gravure online system

uv led printing system

To achieve UV curing +UV drop off speed up to 180m/min.

Common Applications

Suitable for various printing machines such as offset printing, gravure printing, flexo printing, silk screen printing, etc.

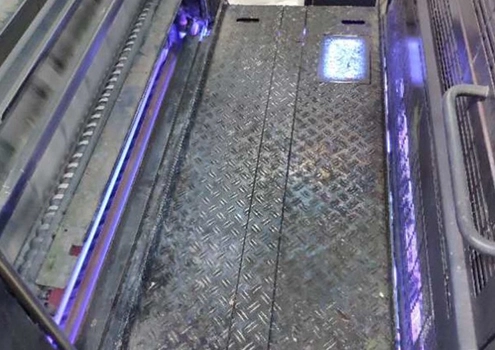

Roland machine equipped with LED

Roland machine equipped with LED

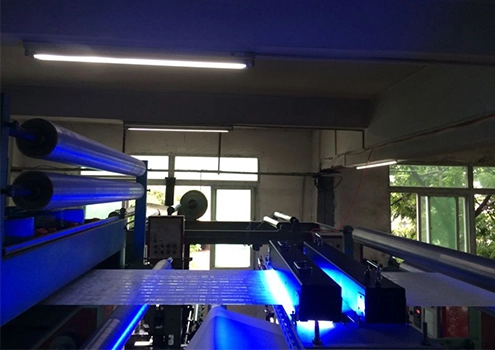

Dongguan Jiasui scene

Dongguan Jiasui scene

Tags

Feel Free To Contact us.

WT will be pleased to assist your evaluation and decision-making process to ensure that the optimal mercury arc, LED, or hybrid solution is matched to your application, process, and integration needs. Please contact our experienced team. We are available to offer guidance on product selection and can deliver the level of experienced system integration and ancillary components you require.

If you would like to find out more about this curing system, we are here to help. Please contact the sales representative that is best placed for your region.

Please enter your name not exceed 100 characters
The email format is not correct or exceed 100 characters, Please reenter!
Please enter a valid phone number!
Please enter your content not exceed 500 characters
